model number: R88
Features:
- Conforms to ANSI B-16.10
- Sizes from 2" to 8" pipe diameter, both light and heavy series
- Scale 3/8 inches = 1'
- Template size 6-3/8 x 5-5/16 inches
- Made in USA

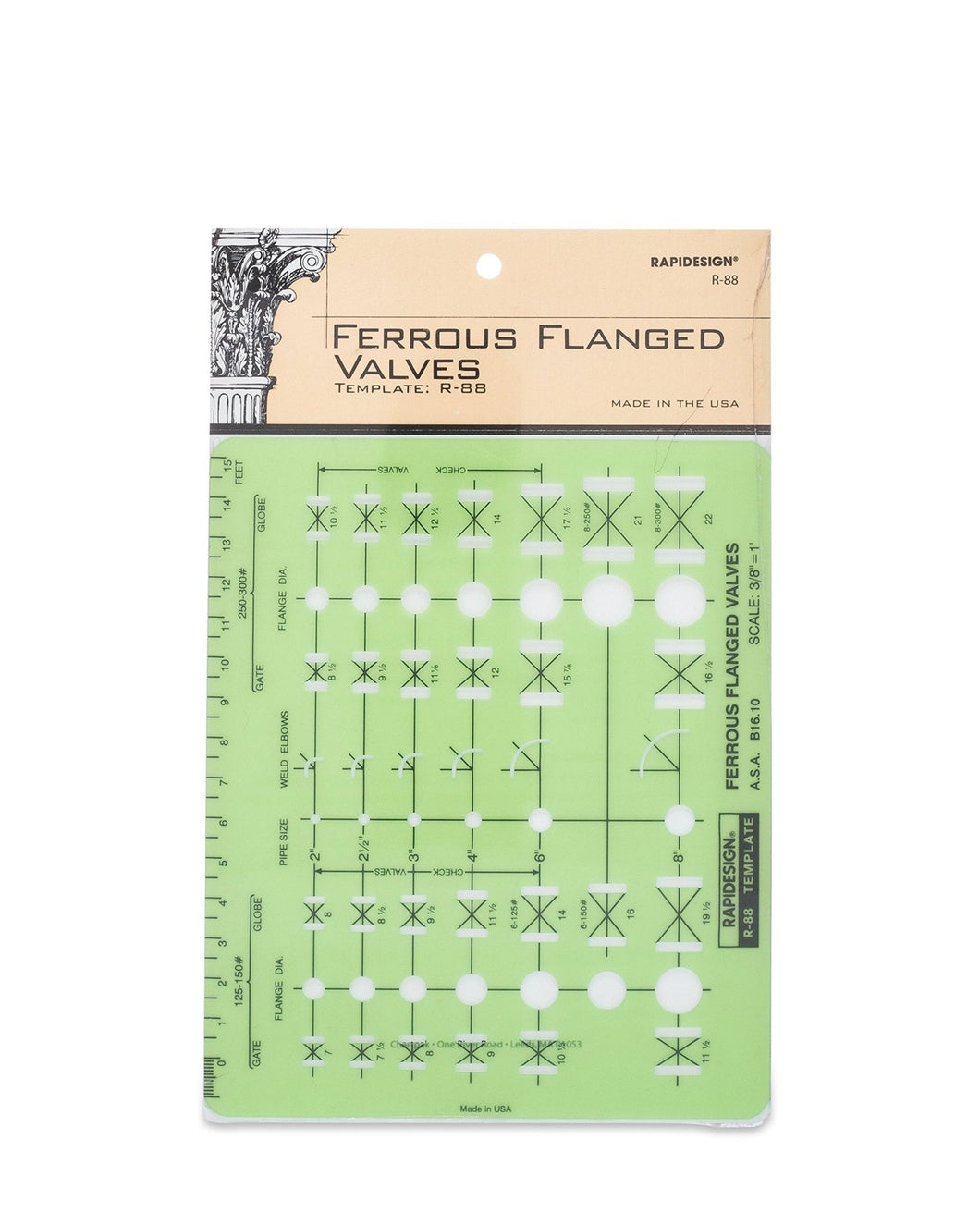

Details: Rapidesign Ferrous Flanged Valve Template (#R88) conforms to ANSI B-16.10. Sizes from 2" to 8" pipe diameter, both light and heavy series. Scale 3/8" = 1'. Made in USA. Rapidesign has the world's largest selection of drafting templates for architects, builders, engineers and graphic designers.
EAN: 0014173254405
