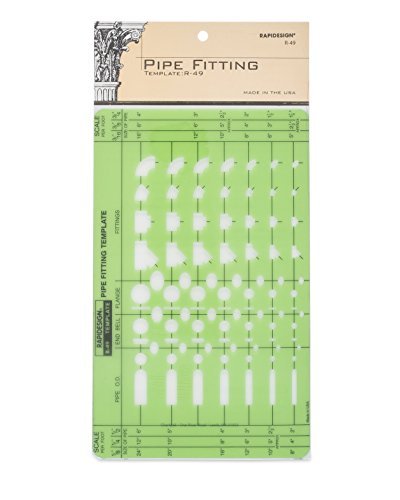

model number: R49
Features:
- Includes symbols for pipe O.D., end bell, flange and fittings
- Features symbols in seven sizes
- Contains six scales: 1/8", 1/4", 1/2", 3/16", 3/8"., 3/4", = 1' scale
- Translucent green template
- Made in USA
Details: Rapidesign Pipe Fittings Template includes symbols for pipe O.D., end bell, flange and fittings in seven sizes and six scales: 1/8", 1/4", 1/2", 3/16", 3/8"., 3/4", =1' scale. Made in USA. Rapidesign has the world's largest selection of drafting templates for architects, builders, engineers and graphic designers.
EAN: 0014173253668
